Female compression fittings give installers a straightforward, reliable method for connecting pipes and tubing. They do away with the need for solder or welded joints. This article explores the function of female compression fittings, highlighting how the compression nut and ferrule ensure a tight seal. It also points out their importance in both plumbing and HVAC applications.
3/8 Valve Adapter
Opting for high-quality pipe fittings can significantly reduce energy losses. This also helps stop refrigerant or water leaks, which can harm the environment. HVAC systems, which include components like compressors, condensers, expansion valves, and evaporators, require robust connections. Selecting the appropriate female compression fitting and compatible materials—such as brass, copper, stainless steel, PVC, or PEX—is essential for long-term system performance.
In many plumbing systems, PEX or PVC with compression fittings are favored for their ease of service and low heat exposure. For different demands, refrigeration lines require fittings that can handle thermal fatigue and keep a seal across a wide temperature range. InstallationPartsSupply.com and its product lines serve these needs, carrying common sizes and parts such as ferrules and compression nuts.
Quick Summary
- Female Compression Fitting uses a compression-nut and ferrule assembly to seal without soldering.
- Matching the fitting material correctly—brass, copper, stainless, PVC, or PEX—helps prevent corrosion and failure.
- Well-matched fittings help cut energy loss and limit refrigerant or water leaks in HVAC and plumbing systems.
- Helpful compression fitting guides and suppliers like InstallationPartsSupply.com simplify part selection.
- Check ferrules and tighten per manufacturer torque to ensure a long-lasting seal.
Understanding Compression Fittings And HVAC Vs Plumbing Applications
Compression fittings fasten pipes and tubing without solder or welding. They are suitable for copper, PEX, PVC, and stainless lines where heat or flame is not practical. Many contractors obtain parts from Installation Parts Supply to help maintain consistent quality and fit.
Understanding How Compression Fittings Work
A compression fitting relies on a nut and a ferrule olive pressed against the pipe by the fitting body. Tightening the nut compresses the brass ferrule or sleeve, which locks onto the outer pipe and forms a seal. This setup explains the common question of what is a compression fitting by showing how mechanical compression creates a leak-tight joint.
How HVAC Fittings Differ From Plumbing Fittings
HVAC fittings need to manage refrigerants, wider temperature swings, and thermal fatigue. Plumbing fittings focus on potable water, wastewater, and pressure from building systems. When comparing HVAC vs plumbing fittings, selection depends on media, service temperature, and pressure ratings.
HVAC equipment such as split systems, VRF, and rooftop units often use copper fittings and brazed joints for refrigerant lines. Plumbing applications often favor PEX compression and PVC for drains, where solvent welds or crimp systems are common.
Brass, Copper, Stainless Steel, PVC, And PEX Materials
Copper fittings are valued for excellent thermal conductivity and corrosion resistance. Brass components, including brass ferrules, help resist wear and are common in many compression fittings. Stainless steel is often chosen for corrosive or high-pressure environments.
PEX compression is popular for domestic water lines because it manages freeze-thaw cycles and is flexible. PVC continues to be a low-cost option for drains and certain chilled-water circuits when pressure is low.
| Material | Primary Use | Key Strengths | Drawbacks |
|---|---|---|---|
| Copper Material | Refrigerant circuits plus potable-water lines | Strong conductivity with durable performance | Higher cost, prone to mechanical damage |
| Brass Components | Compression fittings, nuts, and ferrules | Easy machining and corrosion resistance | Galvanic corrosion risk if poorly matched |
| Stainless steel | Corrosive or high-pressure systems | Excellent durability with corrosion resistance | Costlier with tougher fabrication |
| PEX Pipe | Residential hot/cold water | Freeze-resistant with flexible handling | Must be matched with proper PEX fittings |
| PVC Material | Drain, low-pressure chilled water | Low-cost and simple to install | Unsuitable for high heat or high pressure |
Why Proper Fitting Selection Affects Energy Efficiency And Leak Prevention
Selecting the proper fitting lowers leak risk and maintains system pressure. In refrigeration circuits, a poor joint can release refrigerant and lower efficiency. Leak-tight joints and material compatibility cut maintenance and lower energy waste.
Choosing the proper ferrule olive and matching copper fittings or PEX compression hardware limits the risk of galvanic corrosion and thermal fatigue. That selection strategy improves service life and keeps HVAC and plumbing systems running efficiently.

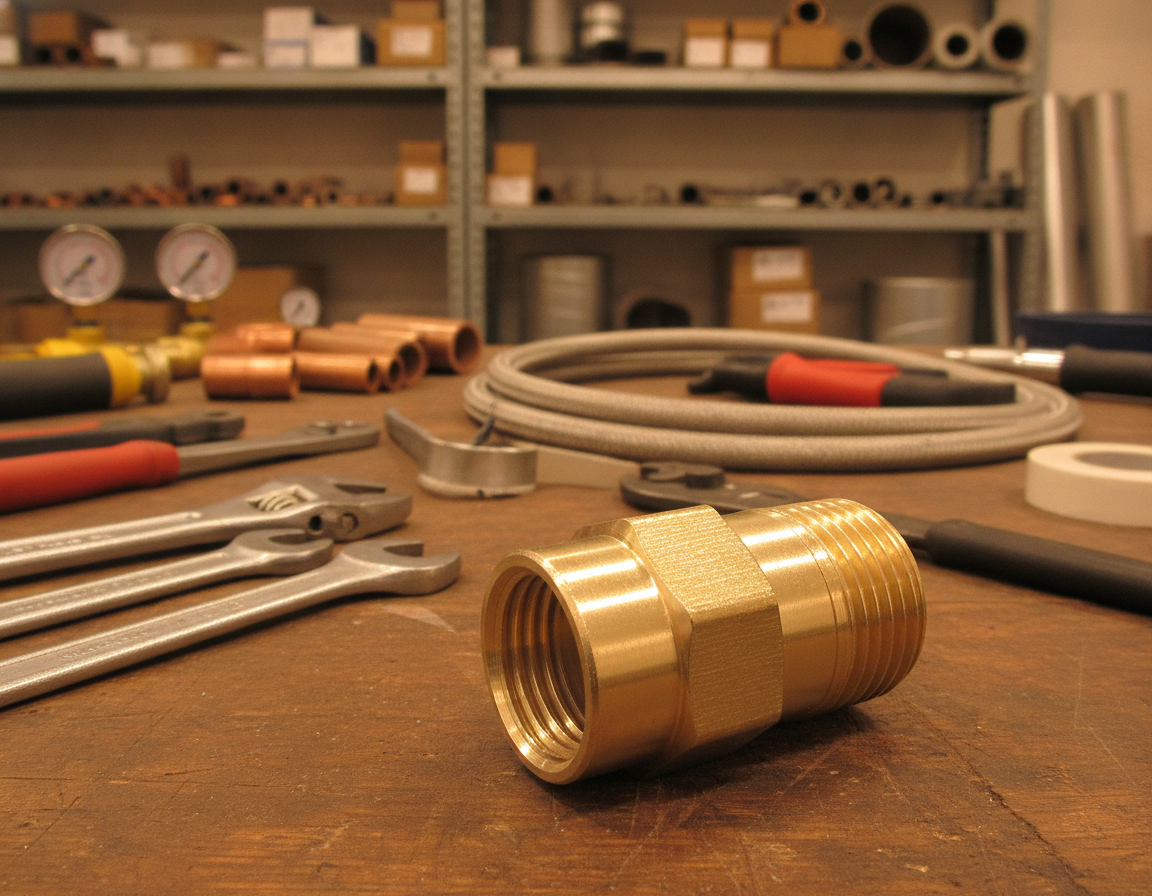

Female Compression Fitting
A female compression fitting secures a pipe or tube end when a nut compresses the ferrule olive against the fitting body. This fitting creates tight connections without soldering, making it common in plumbing and HVAC. Adapters and unions support quick disassembly for service or instrument changes.
Basic Definition And Common Fitting Styles
A typical assembly includes a female compression nut, a ferrule olive, and the fitting body. The nut connects to the fitting body and compresses the ferrule to grip the tube. Common systems include unions, straight fittings, or elbow bodies to adapt direction and access during maintenance.
Materials And Compatibility
Copper and brass are often selected for refrigerant fittings and hot-water lines due to their ability to tolerate thermal cycles and resist deformation. Stainless steel suits high-pressure or corrosive environments. PVC and PEX commonly serve condensate and domestic water runs, but they require proper inserts or specific ferrules for secure joints.
Common Uses In Plumbing, HVAC Refrigerant Lines, And Instrumentation
For plumbing systems, female compression fittings link stops, valves, and supply lines without solder. Across HVAC service applications, technicians use them on refrigerant fittings between compressor, condenser, and evaporator where service access is critical. Instrumentation systems and gas lines commonly need compression parts for leak-tight, serviceable connections.
Comparing Female Compression Fittings, Male Fittings, And Adapters
Female compression fittings receive a male end and form the receiving thread, while a 3 8 Male Compression Fitting provides that mating male component for tubing or ports. A 3/8 Valve Adapter allows technicians interface service valves and gauges to the system. Choosing matched materials prevents galvanic corrosion and keeps joints reliable under pressure and thermal change.
| Component | Usual Material | Typical Use | Service Reminder |
|---|---|---|---|
| Female compression nut | Machined brass | Plumbing feeds and shutoff connections | Do not reuse if damaged or rounded |
| Ferrule olive | Brass or stainless | Creates compression seal on compatible tubing | Often should be replaced during service |
| Body of fitting | Machined brass or stainless | Cooling systems and instrument lines | Match material to refrigerant and pressure rating |
| 3 8 Male Compression Fitting | Copper and brass | Mating for female ports, small-diameter lines | Check thread form and sealing seat |
| Small valve adapter | Brass construction | Gauge and manifold connections | Confirm sealing components before use |
| Installation Parts Supply inventory | Material options vary | Source for replacement nuts, ferrules, and kits | Match ferrules and nuts to protect system life |
Types, Sizes, And Related Adapters For Plumbing And HVAC Projects
This section explores the various fitting types, sizes, and adapters essential for plumbing and HVAC projects. Contractors select couplings, elbows, unions, and adapters to manage line routing, component isolation, and service access. Choosing these components significantly impacts system performance, including pressure rating, temperature limits, and reliability.
Compression couplings and compression unions enable the creation of removable joints for maintenance and testing. Straight couplings are useful for straight connections, while compression unions are preferred for components that need to be disconnected without disrupting the line. For short runs, a 3/8 Compression Coupling is often used in instrumentation and refrigeration applications.
Elbows and adapters are used for tubing routing around obstacles and for connecting different types of fittings. A 3 8 Male Compression Fitting can connect to a female port or adapter, facilitating the integration of service valves and gauges. Installation Parts Supply catalogs provide a wide range of these components, ensuring quick access on job sites.
Selecting the correct size is essential, depending on the tube’s outside diameter and the ferrule and nut set. Confirm that the female compression fitting size matches the tube OD to prevent leaks. For 3/8″ applications, verify ferrule compatibility and torque specifications. Also check the system’s maximum pressure and temperature ratings before making a final selection.
Specialty parts such as the Max Adaptor and 3/8 Valve Adapter are made for connecting gauges, service ports, and small refrigerant lines. These adapters make easier the process of charging and diagnostics in HVAC systems. During HVAC diagnostics, a 3/8 Valve Adapter is commonly used to link manifold hoses to service valves on compact systems.
Choosing material involves a trade-off between durability and corrosion resistance. Stainless steel provides strong corrosion resistance and durability, making it suitable for harsh environments. Brass and copper work well in refrigerant circuits and heat transfer lines due to their balance of machinability and corrosion protection. PVC and PEX are suitable for low-pressure condensate and water lines but not for high-pressure refrigerant service.
Fitting sustainability is affected by leak prevention and recyclability. Well-sealed metal fittings can lower refrigerant emissions and can be recycled at the end of their life. Sourcing reliable parts from reputable distributors reduces failures and minimizes long-term environmental risk.
The table below helps compare between common options by application, pressure, temperature, and reusability.
| Type Of Fitting | Common Use | Usual Maximum Pressure | Temperature Range | Service Reuse |
|---|---|---|---|---|
| Brass coupling | Instrumentation, small water lines, and refrigerant service | Up to 3,000 psi depending on specification | -65°F to 250°F | Limited; reusable if ferrule intact |
| Compression Union brass/stainless | Maintenance access and serviceable joints | As high as 2,500 psi | Typical range from -65°F to 300°F | High reuse when properly serviced |
| 3/8 Compression Coupling | Instrumentation, refrigerant lines, and small plumbing runs | System dependent; confirm rating | Check material spec for HVAC use | Some reuse possible, but service replacement is common |
| 3 8 male compression connector | Adapter for gauges and service valves | Refrigerant-rated when made and specified correctly | Works across common HVAC cycles when specified | Reusable if undamaged |
| Specialty Max Adaptor | Gauge and valve interface coupling | High rating for suitable service tools | Designed around HVAC service cycles | Built for repeated connection and removal |
| Plastic water fittings | Low-pressure water and condensate lines | Low, with no high-pressure refrigerant use | 32°F to 140°F typical | Limited reuse depending on system and UV exposure |
Before buying, check Installation Parts Supply or other reputable distributors for part numbers, material options, and pressure ratings. Confirm that the chosen 3/8 Valve Adapter or Max Adaptor matches both the tubing OD and the service fitting type to avoid mismatches on site.
Installation, Best Practices, And Maintenance
Proper compression fitting installation starts with clean, square pipe ends and the right parts. For HVAC refrigerant lines, use copper and brass. For condensate lines or chilled-water systems, PVC or PEX is best. Always follow manufacturer specs and ASME B31.5 to minimize energy loss and leaks.
How compression fittings are installed
1. First, cut and deburr the tube to a square face. 2. Slide the nut and ferrule onto the pipe in that order. 3. When using soft plastic tubing, insert pipe inserts to keep the tube round before assembly. 4. Hand-tighten the nut, then use the two-wrench technique to finish the joint.
Recommended tools and techniques
Apply the two-wrench technique to hold the fitting body and turn the nut to prevent tube twist. Observe torque recommendations from the fitting maker or Installation Parts Supply when available. A common method is to snug by hand, then add a limited number of wrench turns.
Using pipe inserts correctly
Pipe inserts are important for soft plastic tubing like PEX or thin-wall PVC to prevent ovalization and ensure a leak-free seal. Avoid inserts in solid copper or thick-walled metal tubing, where inserts can interfere with proper ferrule compression.
Common errors and ferrule removal
Prevent both loose and overly tight joints. Too little tightening can cause leaks; over-tightening deforms the ferrule and can make ferrule removal difficult. Compression ferrules are commonly not reused; plan to replace them when disassembling a joint.
Safe ferrule removal steps
Shut off the supply and relieve pressure first. Hold the fitting body with one wrench while loosening the nut with a second. Remove the nut and slide out the ferrule. When the ferrule is seized, apply penetrating oil, use a ferrule puller, or carefully cut the ferrule off without nicking the pipe.
3/8 Valve Adapter installation
For small lines like a 3/8″ valve connection, prepare the tubing the same way and follow the two-wrench technique. Many 3/8 Valve Adapter installation steps mirror larger fittings but require careful attention to torque guidance to avoid crushing the tube or the adapter threads.
Maintenance and inspection guidance
After pressurizing, inspect joints for weeps and tighten slightly if needed. Add routine checks for corrosion and thermal fatigue, mainly on refrigerant circuits. Try not to locate compression joints where vibration will loosen them over time.
| Process Step | Task | Tip |
|---|---|---|
| Prepare | Square-cut, deburr, and clean the pipe | Use a good tubing cutter and deburring tool |
| Assembly | Install the nut and ferrule before inserting the tube | Use pipe inserts on PEX/PVC to retain shape |
| Tighten | Finger-tighten first, then apply two-wrench tightening | Follow torque guidance from manufacturer |
| Leak Test | Apply pressure and inspect for leaks | Inspect carefully and adjust only when safe |
| Routine Service | Inspect regularly, replace ferrules when disassembled | Stock spares from Installation Parts Supply for fast repairs |
Final Thoughts
Choosing a suitable compression fitting is important for plumbing and HVAC work. The material choice, whether brass, copper, stainless steel, PVC, or PEX, must suit the service type. That supports reliability and extends system life. Quality parts and careful installation can lower energy losses and refrigerant leaks, preserving performance and environmental health.
Compression fittings provide a leak-free, solder-free solution. They consist of a nut, ferrule, and body. To help achieve a leak-tight connection, follow these steps: square-cut and deburr the tubing, use the two-wrench technique, and replace ferrules when reused. These steps support long-lasting, leak-tight connections in various applications, from copper piping to instrumentation.
For specific needs, such as 3/8″ lines, 3/8 Compression Coupling, or 3/8 valve adapters, it’s essential to match size and pressure ratings to the task. Quality components from trusted suppliers are key. Installation Parts Supply resources can assist in finding compatible fittings and adapters. Regular maintenance and proper selection preserve system efficiency and compliance.
In summary, dedicating time to material selection and correct assembly is worthwhile. That helps ensure durable, leak-free connections. It helps provide optimal performance, fewer repairs, and less environmental harm.
