An intermittently bonded ribbon production system is instrumental in crafting flexible fiber groups for contemporary, high-count cable architectures. It keeps fibers properly aligned for expedited mass fusion splicing, yet allows the fiber group to remain flexible within a compact cable core.
Compared with continuously bonded ribbons, intermittent bonded ribbons feature localized bonds at predetermined intervals. This strategic placement allows fibers to remain aligned while the ribbon can conform to circular loose tubes and other confined spaces.
Network engineers employ this method when faced with constraints in duct space, splice closures, and equipment racks. A properly engineered ribbon cable facilitates dense network deployments in data centers, telecom backbones, metro networks, FTTx feeder systems, and 5G transport networks.
Intermittent Bonded Ribbon Production Line SZ Stranding Line Fiber Draw Tower
Key Takeaways
- An intermittently bonded ribbon line enables flexible, high-density fiber arrangements.
- Discrete bond points keep optical fibers organized without making the ribbon stiff.
- Flexible ribbon structures allow manufacturers to place more fibers inside compact circular cables.
- Consistent fiber alignment makes mass fusion splicing quicker and easier.
- Ribbon cable technology serves data centers, telecom routes, and fiber access networks.
Intermittent Bonded Ribbon Production Line Overview
This ribbon production method enables the creation of fiber designs that harmonize density with practicality. This method involves applying bond points at controlled intervals, allowing for the movement of fiber subunits between these points.
This technique facilitates the incorporation of a higher number of fibers within constrained duct spaces. It also helps maintain the organized ribbon structure, essential for efficient splicing and cable assembly processes.
What Is An Intermittently Bonded Fiber Ribbon?
An intermittently bonded optical fiber ribbon connects adjacent fibers at specific intervals along its length. The segments between these bonds remain unencumbered, enabling the ribbon to adopt various configurations without rigidification.
The design is frequently known as a rollable, flexible, or spider web ribbon. It contrasts with the conventional flat ribbon cable, which maintains a fixed profile along its entire length.
When splicing is performed, the fibers can be arranged into a flat ribbon for mass fusion operations. In cable production, the same fibers form compact bundles, optimizing space utilization within the cable.
Why High-Density Fiber Networks Need Flexible Ribbon Technology
Fiber network planners must address the challenge of increasing capacity within densely populated conduits, data centers, and access routes. The flexible nature of a flat cable structure allows ribbon groups to fit into smaller cable cores, preserving fiber order.
Fiber density ratio represents a critical metric for network builders, comparing the space occupied by fibers to the total cable area. Intermittent bonding helps increase this density ratio, allowing ribbon groups to occupy available spaces within the cable.
For field installation teams, high-density fiber cables reduce the number of cables required for a given route. This design also supports high fiber counts without necessitating a rigid ribbon stack.

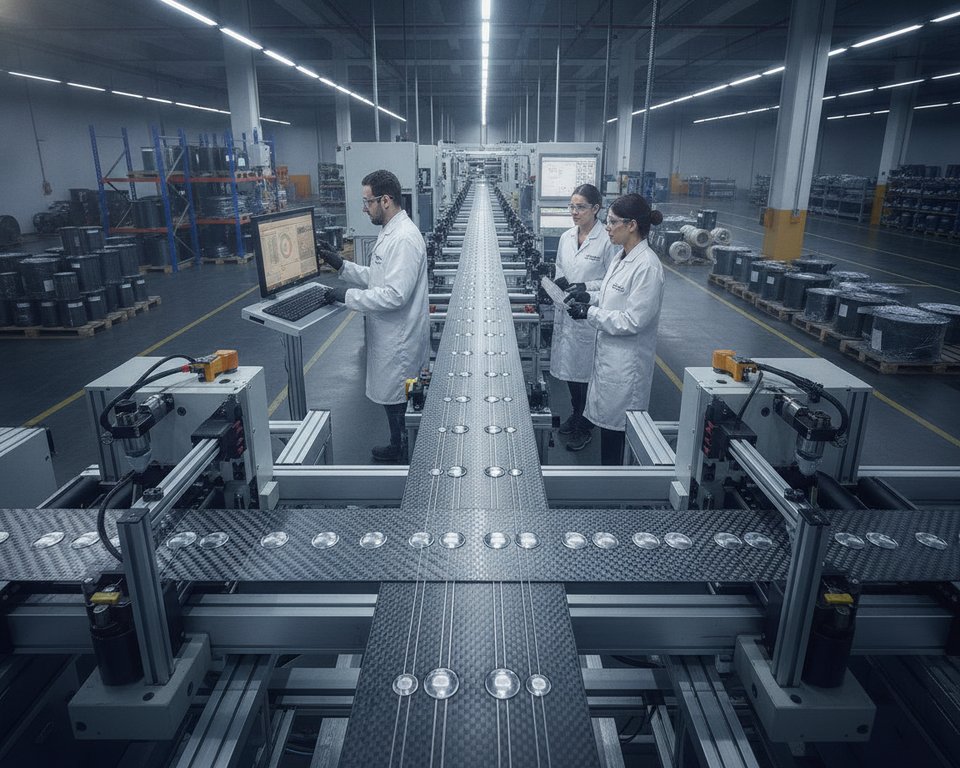

Intermittent Bonded Ribbon Production Line
| Ribbon Feature | Flexible Bonded Design | Traditional Continuous Ribbon |
|---|---|---|
| Bond arrangement | Separated bonds at controlled intervals | Continuous bonds along the ribbon length |
| Fiber shape between bonds | Can roll, curl, or fold for compact packing | Maintains a largely fixed flat profile |
| Splicing position | Can return to a flat format for mass fusion splicing | Is continuously maintained in a flat ribbon shape |
| Cable packing role | Supports dense, flexible subunit placement | Typically uses a fixed ribbon stack configuration |
| Typical cable application | Flexible flat cable and high-density fiber cable designs | Traditional flat ribbon cable designs |
Construction And Material Requirements For Intermittent Bonded Ribbon
An intermittent bonded ribbon integrates precise fiber placement with adaptable bonding points. Its architecture facilitates dense cable configurations while allowing effortless separation during handling, routing, and splicing.
Material selection significantly influences ribbon width, peel characteristics, and durability. Each optical fiber subunit must hold its fibers securely without imparting undue stiffness to the ribbon.
Fiber Count And Subunit Arrangement
Intermittent bonded ribbons can accommodate 4, 8, 12, 24, or up to 36 fibers. The choice of fiber count is determined by cable capacity, available duct space, and the requirements of subsequent mass fusion splicing.
A 12-fiber configuration often employs six subunits, with two adjacent fibers in each subunit. The fibers within a subunit may be in contact or separated by no more than one and a half times the fiber diameter.
The inclusion of small gaps between subunits ensures ribbon flexibility. These gaps typically span from 5 to 100 micrometers, while the fibers remain aligned side by side across the ribbon width.
| Construction Element | Common Arrangement | Manufacturing Purpose |
|---|---|---|
| Fiber count | Configurations of 4, 8, 12, 24, or up to 36 fibers | Aligns fiber count with cable density and splice capacity |
| Subunit layout | Two neighboring fibers in each optical fiber subunit | Maintains predictable separation between subunits |
| Subunit fiber spacing | Contacting fibers or spacing of no more than 1.5 fiber diameters | Keeps the subunit profile compact and stable |
| Spacing between subunits | 5 to 100 micrometers | Allows greater movement and flexibility near bond points |
UV-Curable Resin And Wet-On-Wet Bonding
The coating and bond systems frequently employ UV-curable resin systems. Wet-on-wet bonding involves applying the bond material to the uncured subunit coating, which then cures together under UV energy.
Wet-on-wet bonding produces a diffusion zone where the materials interact. For intermittent bonded ribbons, this zone can range from 2 to 50 micrometers, with 5 to 15 micrometers being the typical focused process range.
The UV-curable materials can combine at the interface before curing. This facilitates molecular entanglement between the bond and the optical fiber subunit coating, resulting in bonds that are both secure and flexible.
Core Equipment In An Intermittent Bonded Ribbon Production Line
A fiber ribbon line integrates advanced motion control with meticulous material handling. Each station maintains fiber cleanliness, alignment, and stability from the initial payoff to the final winding.
The line equipment manages adjacent fiber placement, subunit coating, intermittent bonding, UV curing, cooling, inspection, and take-up. This sequential process enables manufacturers to craft a flexible custom ribbon cable, preserving the integrity of the fiber order.
Fiber Payoff With Tension Control
Fiber payoff systems feed individual optical fibers at a consistent rate from spools. Guides, rollers, and tension sensors prevent sudden pulls, averting twist, slack, or uneven spacing.
During ribbon production, maintaining balanced fiber paths before alignment is critical. Stable tension is essential for forming flat subunits and ensuring accurate color sequence control.
Coating Die And Discrete Bond Applicator
The coating system applies a UV-curable material around groups of two or more fibers. This material defines subunits while maintaining fibers in a flat, parallel layout.
The discrete bond applicator subsequently deposits a second resin between neighboring subunits at planned intervals. This spacing allows the ribbon to flex and separate when needed, a critical aspect of custom ribbon cable design.
| Equipment | Core Function | Process Benefit |
|---|---|---|
| Payoff and tension unit | Supplies fibers under controlled tension | Reduces twist and uneven fiber loading |
| Subunit coating die | Creates coated optical fiber subunits | Supports stable subunit width and geometry |
| Intermittent bond applicator | Deposits resin at set intervals | Creates flexible links between adjacent subunits |
| UV curing, cooling, and take-up unit | Cures and cools the ribbon before inspection and winding | Maintains bond integrity while preserving fiber sequence |
Ribbon Take-Up, Cooling, And UV Curing Equipment
UV energy cures the subunit coating and intermittent bonds while the resin is wet. This wet-on-wet process forms a cohesive interface between materials, influencing bond strength.
Cooling systems reduce ribbon temperature before inspection and winding. The fiber ribbon line may also employ vision checks to monitor width, bond position, and surface quality.
Take-up equipment winds the finished ribbon with low, even tension. Proper winding protects the cured ribbon structure, ensuring the custom ribbon cable is ready for later cabling, splicing, or connector assembly.
Fiber Preparation, Alignment, And Color Control
Reliable ribbon cable production starts with fiber preparation. Each strand must enter the assembly clean, centered, and in the correct sequence before the coating and bonding processes commence.
Managing Fiber Identification During Splicing And Maintenance
Consistent fiber color identification is indispensable for splicing, testing, and maintenance operations. The standard 12-fiber sequence, typically consisting of blue, orange, green, brown, slate, white, red, black, yellow, violet, rose, and aqua, facilitates swift identification.
When fiber counts increase, the sequence may be repeated within controlled subunits. This method ensures that each ribbon cable remains organized within splice trays, closures, and cable connector layouts.
| Ribbon Fiber Position | Fiber Identification Color | Process Purpose |
|---|---|---|
| 1 | Standard blue | Starts the standard fiber color sequence |
| 2 | Orange | Provides rapid visual identification |
| 03 | Green | Maintains the specified planar order |
| 4 | Standard brown | Supports confirmation of subunit position |
| 05 | Standard slate | Supports identification around the middle of the sequence |
| 6 | Standard white | Provides strong visual contrast for inspection |
| 7 | Standard red | Improves traceability in splicing records |
| 8 | Black | Maintains sequence recognition in trays |
| 09 | Yellow | Aids field restoration work |
| Position 10 | Standard violet | Separates late-sequence fibers clearly |
| 11 | Standard rose | Supports high-count ribbon identification |
| Position 12 | Standard aqua | Marks the final position in the standard color order |
Preventing Fiber Twisting And Uneven Tension
Payoff systems and guides are essential in maintaining fibers in a flat, side-by-side configuration. This prevents twist, crossing, and gaps that could alter the ribbon’s width or distort the bond pattern.
Operators closely monitor tension across every path before the fibers reach the coating die. Proper alignment is critical for mass fusion splicing and ensures the finished ribbon cable fits its intended cable connector system.
Intermittent Bond Application And UV Curing Process
The intermittent bonding process joins fiber subunits without solidifying the ribbon into a rigid form. This method supports compact routing and ensures dependable handling within a flexible flat cable. It also aids in maintaining the planned fiber layout during subsequent cable assembly.
Applying Intermittent Bonds At Predetermined Intervals
Bond applicators place resin at intervals ranging from 10 mm to 1,000 mm. The bond locations may stagger along the ribbon’s length. This arrangement provides support to adjacent subunits while allowing sufficient free length for movement.
The bond applicator delivers a measured amount of UV-curable resin at each bond point. Bonds often exhibit a diamond-like shape, with wider centers and narrower ends. The tapered ends mitigate abrupt stress changes when the cable bends or twists.
Creating Strong, Flexible Bond Interfaces
Wet-on-wet processing requires applying a second material before the first subunit coating cures. The uncured layers can blend before undergoing a shared UV curing step. This approach fosters a gradual interface, unlike a sharp material boundary.
The resulting gradient influences various properties, including color, Young’s modulus, and surface friction. Bond ends may feature saddle-like surfaces with both convex and concave curves. These features enhance the cable’s resistance to peeling while facilitating separation when required.
Controlling UV Curing Performance
The UV lamps must supply consistent energy across the ribbon. Factors such as line speed, lamp output, resin volume, and exposure time impact the bond’s quality. Selecting the right UV-curable resin ensures rapid curing without compromising the fiber coating.
Operators closely monitor bond shape, cure level, and ribbon flexibility during production. The cured cable should transition smoothly from a flat plane to various forms without bond damage. Controlled curing ensures consistent handling throughout winding and downstream processing.
Flexible Flat Cable And Fiber Ribbon Quality Control
Ensuring each flat ribbon cable’s integrity is a meticulous process. It involves checking the cable’s flexibility and its readiness for subsequent splicing operations. During production, operators assess the fiber count, color sequence, and precise positioning of each fiber. They also evaluate the cable’s winding condition, ensuring its optimal state for assembly.
Frequent quality checks are important in identifying any defects in the coating, uneven tension, or misplaced bonds. These issues, if left unaddressed, could compromise the cable’s performance in subsequent stages of production.
Checking Bond Spacing, Ribbon Width, And Thickness
The distance between bonding points is a critical parameter, requiring adherence to a specific design range. This spacing is essential for the cable’s flexibility, ensuring that the fibers remain aligned within their designated subunits during bending.
Inspection protocols are in place to confirm that each bond correctly connects adjacent subunits. This attention to detail ensures that the ribbon lays flat, facilitating smooth mass fusion splicing processes.
| Inspection Area | Items Checked | Quality Benefit |
|---|---|---|
| Fiber identification | Fiber number, color order, and placement | Supports reliable splice records and maintenance activities |
| Bonding pattern | Bond location, spacing, and subunit connection | Maintains flexibility and fiber organization |
| Ribbon geometry | Width, thickness, and flatness | Ensures the ribbon works with downstream handling and splicing tools |
| Ribbon surface condition | Cure quality, coating completeness, and visible defects | Reduces handling damage during winding |
Optical And Mechanical Performance Testing
Mechanical testing focuses on bond separation, cohesive strength, elongation, and handling behavior. These evaluations are essential to confirm that the manufacturing process controls are consistent across similar designs of flat cables.
Optical testing encompasses evaluations after bonding and curing. It ensures that the core, cladding, primary coating, secondary coating, and color layer are adequately protected throughout the manufacturing process.
Attenuation measurements and splice-handling tests are integral to routine inspections. The quality of winding is also scrutinized to ensure that the finished flat ribbon cable is in a controlled condition for assembly.
Precision Winding, Automation, And Production Efficiency
Efficient ribbon manufacturing depends on a unified production line. Each stage, from fiber payoff to inspection and take-up, must harmonize seamlessly. This synchronization ensures the preservation of fiber geometry and facilitates consistent output, critical for high-speed data transmission cables.
Production Line Synchronization And Process Data Monitoring
Automated control systems synchronize payoff speed, fiber tension, resin delivery, bond placement, UV curing, cooling, and take-up. Adjustments are made in real time to maintain ribbon stability when speed variations occur at any station.
Manufacturing data records capture fiber color sequences, bond intervals, cure settings, ribbon dimensions, and winding status. This detailed history allows operators to track the production of each custom ribbon cable.
- Controlled payoff tension reduces fiber stretching and slack.
- Controlled bond timing maintains regular intervals between bond points.
- Regular dimensional checks reveal ribbon width or thickness deviations early.
- Winding data facilitates lot tracking and downstream handling.
Ribbon Winding For Downstream Cable Production
Precision winding equipment ensures the ribbon is wound onto a spool with uniform tension and controlled movement. This method prevents edge crushing, layer crossing, and sudden pulls during subsequent cable processing.
Finished ribbon units can be stacked, rolled, or loaded into central tube and loose tube designs. These configurations enable the creation of high-speed data transmission cables, even in areas where duct additions are impractical.
For customized ribbon products, the winding pattern must align with subsequent processes. Proper spool buildup is essential for smooth payout during stranding, tube loading, and cable assembly.
| Monitored Area | Primary Control Focus | Resulting Benefit |
|---|---|---|
| Optical fiber payoff | Stable tension and correct color sequence | Orderly ribbon placement during cable assembly |
| Bond application | Controlled bond intervals and resin quantity | Flexible ribbon behavior during handling |
| UV curing process | Controlled lamp output and exposure time | Properly cured bonds before ribbon winding |
| Cable precision winder | Consistent traverse, winding tension, and layer formation | Smooth payout for central tube or loose tube loading |
Applications, Splicing, And Connector Planning For Ribbon Cable
Ribbon fiber is widely used in dense links within data centers, telecom backbones, metro rings, and FTTx feeder routes. It also excels in indoor FTTH runs, 5G fronthaul, and outdoor point-to-point networks where space is at a premium.
A properly planned ribbon cable system enables crews to manage high fiber counts efficiently, without increasing bulk. Each high-speed data transmission cable must align with the site’s route, enclosure space, and future expansion plans.
Advantages Of Mass Fusion Splicing
Ribbon fusion equipment enables the joining of an entire ribbon in a single operation. For a 12-fiber ribbon, a matching cleaver can prepare all 12 fibers simultaneously before the automated fusion process commences.
Mass fusion processing lowers handling time and ensures consistent fiber alignment. Splice loss is reported to remain below 0.05 to 0.10 dB per fiber, contingent upon controlled preparation, cleaning, and machine settings.
Loose tube cable, on the other hand necessitates a different strategy at the splice cassette. Technicians must separate the fibers, then splice them individually, which prolongs the ribbon cable assembly process.
Connection Planning For Dense Links
Multi-fiber connections commonly use MPO or MTP trunks, harnesses, fanout cables, and cassette modules. The chosen cable connector must align with the fiber count, polarity method, connector gender, and fiber type.
System planning must also account for transceiver requirements and the full link loss budget. A high-speed data transmission cable, when used with parallel optics, demands a clear polarity path from equipment port to patch panel.
| Network Planning Item | What It Determines | Common Network Use |
|---|---|---|
| Number of ribbon fibers | Required splice capacity and cassette configuration | 12-fiber and 24-fiber backbone links |
| MPO/MTP cable connector | Polarity management and equipment port compatibility | Data center trunks and 5G equipment rooms |
| Harness or fanout cable | Transition from multi-fiber connections to single-fiber ports | Switch connections and patching fields |
| Link loss budget | Allowed loss from splices, connectors, and fiber length | High-speed data transmission cable routes |
Shanghai Weiye OFC Equipment For Fiber Ribbon Line Projects
Shanghai Weiye OFC Equipment, commonly referred to as SHWY, specializes in machinery for the production of optical fibers and cables, serving markets in the United States and globally. Its offerings are designed to ensure consistent processing, facilitate clear operator control, and enable seamless integration into production lines.
For manufacturers planning an intermittent bonded ribbon production line, SHWY supports every stage of ribbon handling, curing, and winding with suitable machinery.
SHWY Optical Fiber And Cable Machinery Experience
Founded in 1998, SHWY’s journey in the industry has been marked by significant milestones. By 2012, its annual turnover surpassed 200 million CNY, strengthening its position within a prominent Chinese fiber and cable conglomerate as a joint venture.
SHWY became independent in 2020, relocating to a state-of-the-art facility in central Shanghai. This move underscored its commitment to advancing equipment research, manufacturing, and process application while supporting operational stability.
Relevant Production Equipment From SHWY
SHWY offers a diverse range of equipment, including fiber draw towers, coloring machines, secondary coating lines, SZ stranding equipment, and cable sheathing lines. Notably, it also features a fiber ribbon line tailored for flat, high-count fiber formats.
Within ribbon cable production, a cable precision winder plays a critical role in maintaining orderly package buildup and controlled tension. This ensures safer transport and more consistent feeding into subsequent cable production stages.
The broader SHWY portfolio also includes FTTH lines, indoor cable equipment, and OPGW fiber-in-stainless-steel-tube systems. These options enable manufacturers to integrate an intermittent bonded ribbon production line with complementary cable processes.
Summary
An intermittent bonded ribbon production line integrates fiber alignment, controlled bonding, UV curing, inspection, and precision winding into a unified process. Each step helps preserve fiber sequence while maintaining the necessary bendability for dense cable designs. This combination is critical for the creation of high-density optical networks.
The resulting ribbon structure provides efficient mass fusion splicing and organized fiber management. It is ideal for applications with high fiber counts, confined ducts, limited tray space, and frequent splice points. This makes it a cornerstone in many high-density ribbon cable routes.
Effective project planning extends beyond the production line. It encompasses the cable structure, closure capacity, fusion tools, test methodologies, labeling, and restoration records. These elements must align with the planned network architecture for seamless integration.
